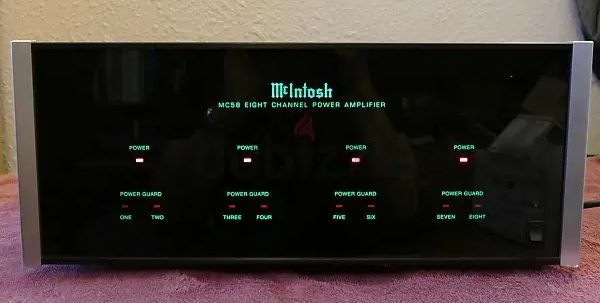

MCINTOSH MC58 MULTICHANNEL AMPLIFIER – 8 CONFIGURABLE CHANNE

Item overview
AGE
0-1 month
USAGE
Out of original packaging, but only used once
CONDITION
Perfect inside and out
WARRANTY
Does not apply
Description
Specifications
8 x 30W
6 x 30W Plus 1 x 100W
4 x 30W Plus 2 x 100W
2 x 30W Plus 3 x 100W
4 x 100W
Power Output Per Channel
50 watts into 4 ohm load and 30 watts into 8 ohm load is
the minimum sine wave continuous average power output
per channel, all channels operating.
Power Output Bridged
100 watts into 8 ohm load is the minimum sine wave con-
tinuous average power output per channel, all channels op-
erating.
Rated Power Band
20Hz to 20,000Hz
Total Harmonic Distortion
Maximum Total Harmonic Distortion at any power
level from 250 milliwatts to rated power output is:
0.005% for 4 ohm loads
0.005% for 8 ohm loads
0.005% for Bridged Mode with 8 ohm loads
Dynamic Headroom
1.8dB
Frequency Response
+0, -0.25dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
Sensitivity
1 volt (2.5V at level control center detent position)
A-Weighted Signal To Noise Ratio
92dB (112dB below rated output)
Wideband Damping Factor
100 @ 4 ohms
200 @ 8 ohms
Intermodulation Distortion
Maximum Intermodulation Distortion if instanta-
neous peak output per channel does not exceed
twice the rated output, for any combination of fre-
quencies from 20Hz to 20,000Hz, with all channels
Hide full description
Location
Sonapur, Muhaisnah, Dubai, UAE
